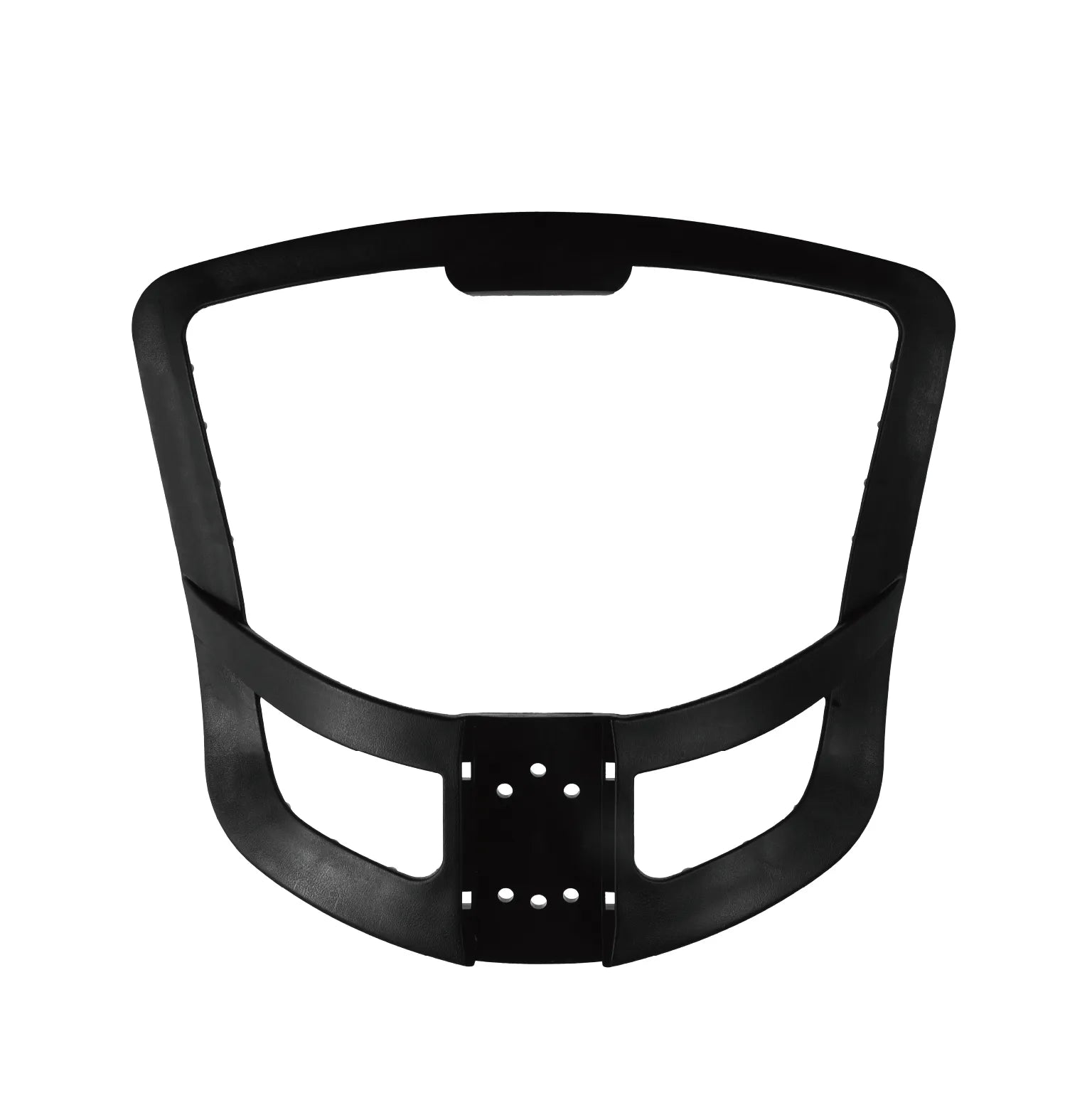

• CenturyShine TQ-460 Backrest Frame Studio View. Features an ergonomic curved design with geometric triangular reinforcement ribs extending from both lower sides toward the center, enhancing lumbar support strength and overall frame rigidity.

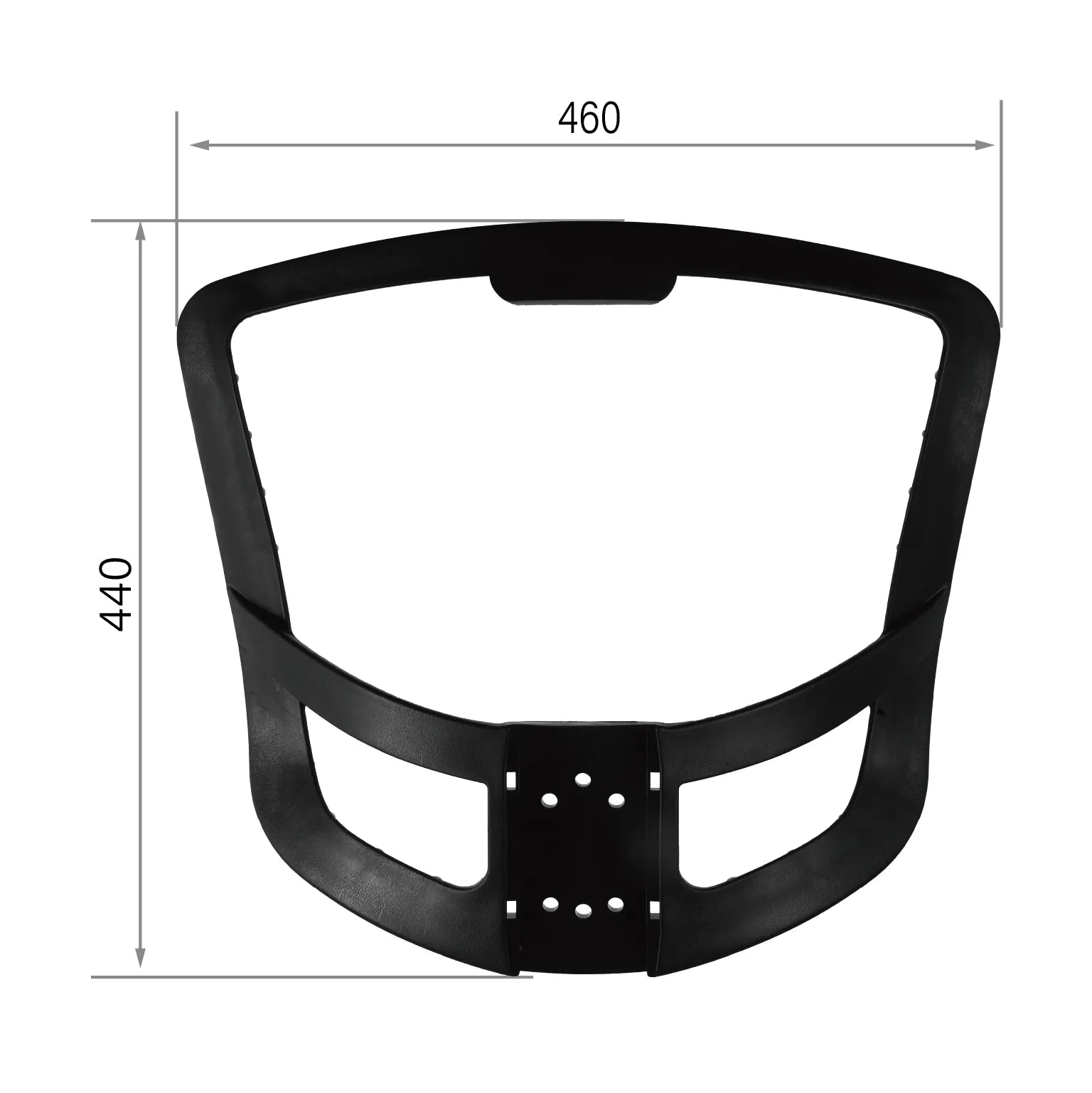

  • CenturyShine TQ-460 Backrest Frame Dimensional Drawing. Provides detailed width and height specifications, offering B2B clients precise technical data for optimal compatibility and integration.

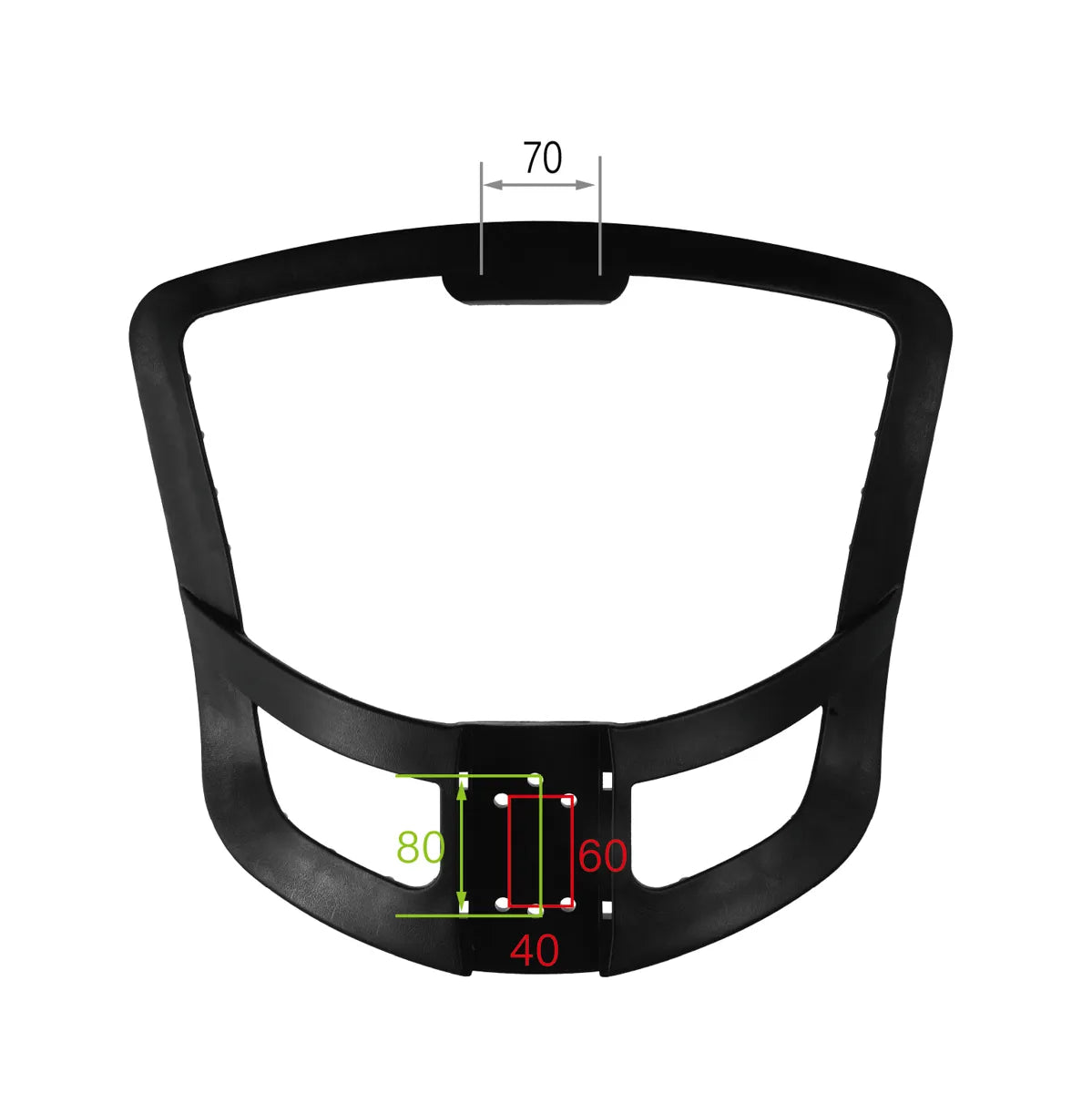

  • CenturyShine TQ-460 Backrest Frame Mounting Hole Pattern. Provides detailed center-to-center hole dimensions, offering B2B clients precise technical data for accurate fitment and assembly.
1 3

CenturyShine 勝家聖

TQ-460

TQ-460

Product Overview

TQ-460 backrest frames are produced using proprietary molds and utilize a stapled-mesh with pressure strip construction to ensure uniform mesh tension.

Product Specifications

  • Width: 460 mm
  • Height: 440 mm
  • Mounting Pitch: 40 x 60, 80 mm (C.C.)
  • Frame Material: PP
View full details

Frequently Asked Questions

Structure & Assembly Craftsmanship

Q: What are the depth and width dimensions of the mesh-clinching groove on this backrest? Which tension bar is it compatible with?
A: The frame features a standardized professional-grade mesh groove with precision-machined dimensions, specifically optimized for 10.5 mm tension bars.

Materials & Quality Certification

Q: What material is used for the backrest? Will it become brittle over long-term use?
A: We use PP material, which offers excellent chemical stability and fatigue resistance.

Q: Once the mesh is stapled, will the edges of the groove crack due to excessive tension?
A: We have specifically reinforced the wall thickness of the groove area. Field tests prove that even under high-tension upholstery conditions, the edges remain stable, effectively preventing cracks caused by stress concentration in the injection-molded parts.

Procurement, Logistics & Supply Chain Flexibility

Q: What is the Minimum Order Quantity? Do you support bulk exports and provide Certificates of Origin?
A: We fully support large-scale OEM/ODM procurement and possess extensive export experience. As a Taiwan-based manufacturer, we can provide a Certificate of Origin to facilitate your global market strategy, helping you optimize import duties and streamline customs clearance.

Q: Do you offer full chair assembly or knocked-down shipping options?
A: We offer flexible shipping configurations. You may purchase components individually, or entrust us to integrate other parts for complete chair assembly or Knocked-Down shipping. This flexibility is designed to reduce assembly complexity at your end-destination and optimize container space.
